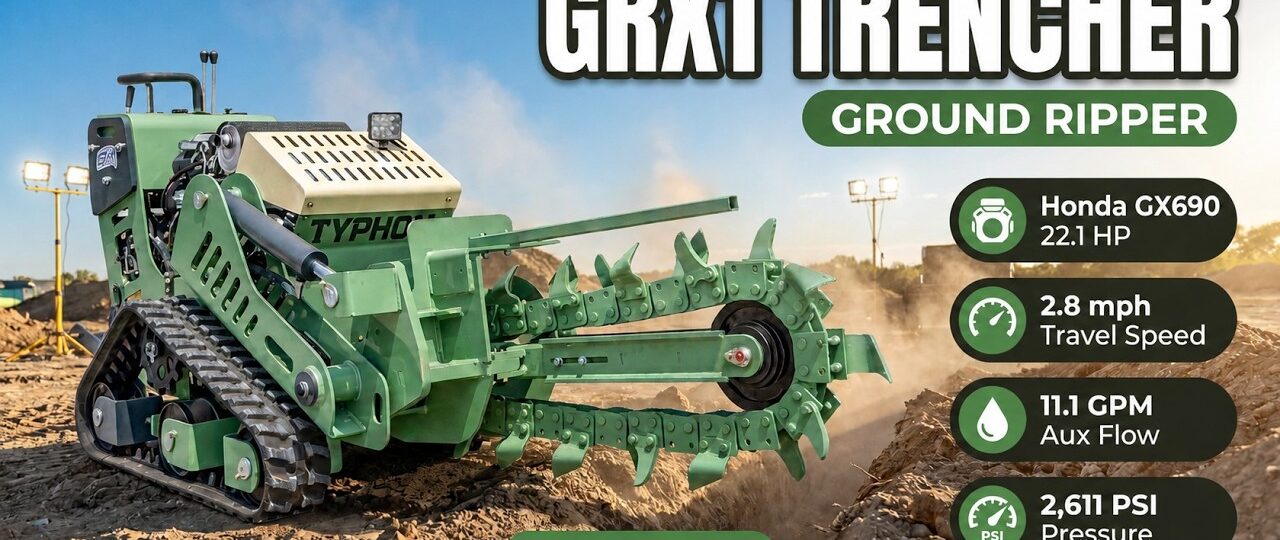

Eliminate the need for multiple machines and cut your labor costs down to size. Meet the TYPHON GroundRipper GRX-1, a heavy-duty compact tracked trencher from the Konstructz Series. It’s built to deliver relentless cutting force while staying agile enough for tight, unforgiving job sites.
Whether you’re laying fiber, installing irrigation, running electrical lines, or prepping a site, the GRX-1 cuts clean, consistent trenches with one machine and one operator.
🔥 LEGENDARY HONDA PERFORMANCE
The GRX-1 is powered by the reliable Honda GX690 engine, producing 22.1 HP at 3,600 RPM for dependable, continuous power on your most demanding jobs. A 2.8 mph maximum travel speed means less time repositioning and more time cutting.
📏 SURGICAL TRENCHING ACCURACY
Cut trenches up to 29.5 inches deep and 6 inches wide through varying soil conditions. Advanced hydraulic boom control lets operators dial in depth smoothly and precisely for a consistent trench from start to finish.
⚙️ ADAPTABLE HYDRAULIC DRIVE
A direct hydraulic drive with precise flow control lets you match chain speed to the exact ground conditions. Responsive forward and reverse controls give you maximum efficiency with every pass.
📐 COMPACT AGILITY AND STABILITY
The GRX-1 has a compact footprint and a low center of gravity. Its rugged tracked design keeps it stable on uneven terrain and lets it fit easily into confined residential yards and crowded commercial sites.
🛠️ SIMPLIFIED DAILY MAINTENANCE
Time spent wrenching is time not trenching. Practical tank sizes, straightforward fluid management, and quick access to every vital service area keep you working.
📋 KEY SPECIFICATIONS
Engine: Honda GX690, 22.1 HP @ 3,600 RPM
Max Trenching Depth: 29.5 in
Trenching Width: 6.0 in
Travel Speed: 2.8 mph
Auxiliary Flow: 42 L/min (11.1 GPM)
Max Hydraulic Pressure: 18 MPa (2,611 PSI)
Dimensions: 96.5″ L × 36.4″ W × 47.2″ H
Fuel Tank: 15 L (4.0 gal)
Hydraulic Tank: 30 L (7.9 gal)
🏗️ BUILT FOR EVERY JOB SITE
Utilities and communications: electrical cables, fiber optics, and communication lines
Water management: irrigation systems and drainage pipe installation
Site prep: landscaping, municipal projects, and agricultural trenching
Stop doing things the hard way. The TYPHON GroundRipper GRX-1 is built to help you conquer the dirt and get more done.
