TYPHON STOMP V900 | 1.4-Ton Mini Track Loader | 25HP Kubota D1105 Engine | Dual Auxiliary Hydraulic Output System |
1,102 lb Maximum Load Capacity | 35.9 Inches Wide | Triangular Track System | EPA + EU Stage V Compliant | Full Review 2025

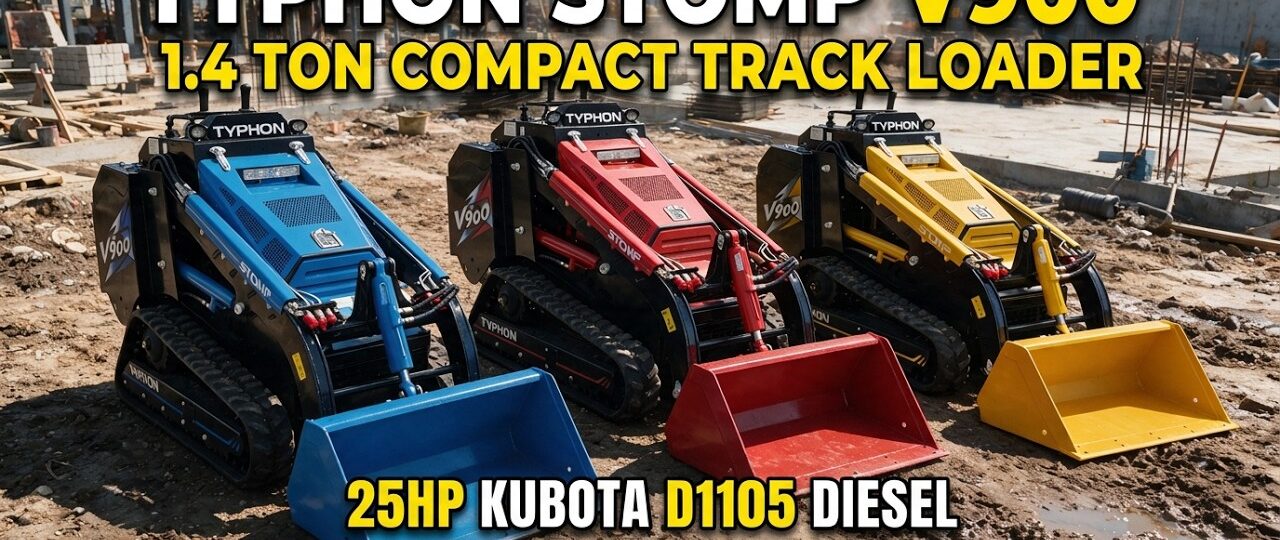

The TYPHON STOMP V900 is a professional-grade 1.4-ton mini track
loader engineered for contractors, landscapers, farmers, municipalities, and rental fleets who need genuine commercial capability in a compact
frame that fits through standard gates and performs on soft ground, mud, and uneven terrain.
At just 35.9 inches wide, the V900 accesses confined work areas where
larger equipment cannot go — while delivering a dual auxiliary hydraulic
output system, Kubota D1105 power, triangular track traction, and
commercial-grade lifting capacity that punches well above its weight class.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚙️ ENGINE AND COMPLIANCE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Engine: Kubota D1105
✅ Power: 25HP Three-Cylinder Water-Cooled Diesel
✅ Displacement: 1,226 cc
✅ Maximum Torque: 71.5 N·m
✅ Fuel Tank: 33L | 8.7 Gallons
✅ Compliance: EPA + EU Stage V
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💧 HYDRAULIC SYSTEM
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ System: 3-Pump | 3-Valve
✅ Flow Rate: 48 L/min | 12.7 GPM
✅ Rated Pressure: 16 MPa | 2,321 PSI
✅ Dual Auxiliary Hydraulic Output System
✅ Quick-Connect Hydraulic Couplers
✅ Independent Hydraulic Oil Cooling
✅ Protected Hydraulic Hose Routing
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
💪 LIFTING CAPACITY
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Rated Operating Capacity:
1,014 lbs | 460 kg
✅ Maximum Load Capacity:
1,102 lbs | 500 kg
✅ Max Operating Height:
9.4 Ft | 2,873 mm
✅ Dumping Height:
5.6 Ft | 1,704 mm
✅ Reinforced Hydraulic Cylinder Mount
✅ Rectangular Boom Tube
Low-Weld Design
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔩 TRACK SYSTEM AND ACCESS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Overall Width: 35.9 In | 911 mm
✅ Triangular Track System
✅ Superior Traction and Flotation
✅ Soft Soil | Mud | Gravel | Uneven Terrain Ready
✅ Standard Gate Access
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
👷 OPERATOR PLATFORM
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Stand-On Ergonomic Platform
✅ Dual Joystick Controls
✅ Digital Dashboard — Fuel + System Status
✅ Fish-Eye Anti-Slip Pedals
✅ Three-Point LED Lighting System Dual Work Lights + LED Light Bar
✅ Protective Side Safety Guards
✅ T-Style Locking System
✅ High-Strength Hinges
✅ One-Touch Key Start
✅ Easy-Access Service Design
