You operate a bulldozer. You push dirt, rock, and debris all day. Your undercarriage takes the worst beating. Tracks, rollers, sprockets, and idlers work together to keep you moving. When one part fails, you stop.
Track derailment is the most common and costly undercarriage failure. It takes hours to fix, damages other components, and puts the machine out of service. Just like knowing what to check when a mini excavator quick coupler locks loose, understanding your track system is critical.
Having your bulldozer track tension wrong is the leading cause of derailment. Loose tracks slip off the rollers. Tight tracks stress the entire undercarriage. One grease adjustment prevents track derailment.
The adjustment takes seconds. The adjustment costs nothing. The adjustment saves thousands of dollars. This post shows you how to check track tension. You learn the correct sag measurement. You learn the grease adjustment procedure. You learn how to prevent derailment.
The undercarriage supports the entire machine. Tracks wrap around the drive sprocket, idler wheel, and carrier rollers. The track must stay tight enough to stay on the rollers. The track must stay loose enough to allow rotation.
Having your bulldozer track tension wrong happens when the track is too tight or too loose.
Loose Tracks (Too Much Sag)
- Track hangs down between the idler and the first carrier roller.
- Droop allows the track to slip off the rollers during turns.
- Whips and slaps the track frame.
- Whipping damages the track links and bushings.
Tight Tracks (No Sag)
- Track pulls tight against the rollers.
- Places extreme stress on the entire undercarriage.
- Bearings overheat, rollers fail, sprockets wear fast.
- Stretches the track chain leading to failure.
The correct tension is specified in your operator manual. The manual gives you a sag measurement. Sag is the distance the track drops when the machine is parked on level ground. Correct sag keeps the track on the rollers without overstressing components.
Your bulldozer track tension wrong problem happens when you do not check it daily. Tension changes with temperature. Hot weather tightens the track. Cold weather loosens the track. Material buildup between the track and the track frame also affects tension.

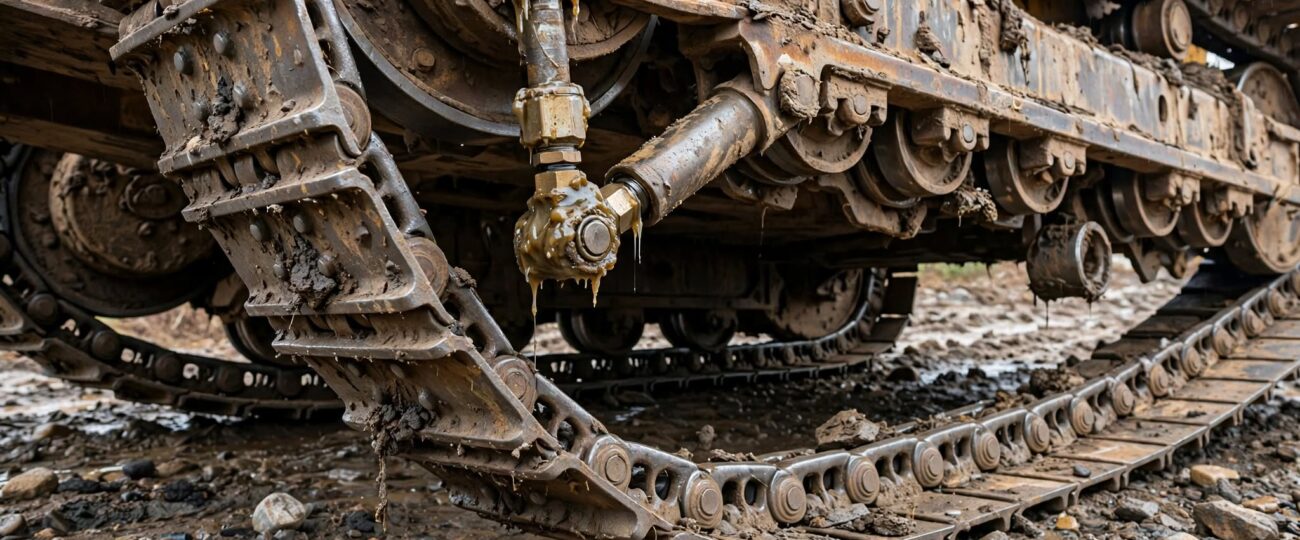

The track tension system uses a grease cylinder. The grease cylinder sits between the idler wheel and the track frame. Grease pressure pushes the idler forward. Forward pressure tightens the track. Releasing grease allows the idler to move back. Back movement loosens the track.
Having your bulldozer track tension wrong means the grease pressure is incorrect. The one grease adjustment corrects the pressure. Correct pressure gives correct sag. Correct sag prevents derailment.
Tools you need: A grease gun with the correct grease. A tape measure. A wrench to open the grease valve. Your operator manual showing the correct sag measurement.
- Park safe: Park the bulldozer on level ground. Lower the blade to the ground. Shut off the engine. Engage the parking brake. Lock out the machine.
- Locate idler: Walk to the front of the machine. Locate the idler wheel. The idler is the large wheel at the front of the track frame.
- Measure sag: Place the tape measure on the track frame. Measure from the track frame to the top of the track shoe. Record this measurement. This measurement shows your current sag.
- Check manual: Check your operator manual for the correct sag measurement. Most bulldozers need 2 to 3 inches of sag. Some larger machines need 1 to 2 inches. Some smaller machines need 3 to 4 inches.
- Release grease (if tight): If the sag is too small, your track is too tight. Release grease. Locate the grease valve on the track frame. Open the valve slowly. Grease will spray out. The idler will move back. Close the valve when sag reaches the correct measurement.
- Add grease (if loose): If the sag is too large, your track is too loose. Add grease. Connect the grease gun to the grease fitting. Pump grease into the cylinder. The idler will move forward. Pump until sag reaches the correct measurement.
- Confirm & Test: Repeat the measurement after each adjustment. Confirm the sag matches your manual specification. Your bulldozer track tension wrong issue will be corrected. Drive forward, reverse, and make a slow turn. The track should stay on the rollers.
Ignoring track tension causes serious damage.
- Derailment stops work: A derailed track requires 2 to 4 hours to repair. The track must be lifted back onto the rollers. The machine must be blocked up. Production stops for the day.
- Derailment damages the track: The track chain twists during derailment. Twisted links must be replaced. Replacement costs $1000 per link. Derailment damages the idler guard and idler shaft. Idler replacement costs $2000.
- Tight tracks wear components fast: The track chain stretches under tension. A stretched chain jumps teeth on the sprocket. Sprocket replacement costs $1500. Roller bearings overheat and fail. Roller replacement costs $500 each.
Having your bulldozer track tension wrong leads to undercarriage failure. Undercarriage replacement costs 25000 to 40000 dollars. The correct grease adjustment prevents this cost.
Track tension directly affects undercarriage life. Correct tension doubles component life. Wrong tension halves component life.
| Track Condition | Average Track Life |
|---|---|
| Correct Track Tension | 4,500 hours |
| Loose Tracks | 2,500 hours |
| Tight Tracks | 2,000 hours |
Having your bulldozer track tension wrong cuts your track life in half. Over 5000 operating hours, the difference is 2500 hours of lost life. Undercarriage replacement costs 30000 dollars. 2500 hours of lost life costs 15000 dollars.
Roller life also improves with correct tension. Correct tension gives 4000 hours of roller life. Loose tracks give 2000 hours. Tight tracks give 1500 hours. Sprocket life improves with correct tension. Correct tension gives 5000 hours of sprocket life. Loose tracks give 2500 hours. Tight tracks give 2000 hours.
The grease adjustment costs zero dollars. The grease adjustment saves thousands of dollars. Operating with your bulldozer track tension wrong is a costly mistake. Fix it today.
Prevention stops tension problems before they start. Use these actions.
- Check track tension daily: Park on level ground. Measure the sag. Compare to the manual specification. Adjust if needed. This takes 2 minutes.
- Clean tracks daily: Mud and rocks stick between the track and the track frame. Debris changes the effective sag measurement. Clean both tracks.
- Check tension after material changes: Moving from dirt to rock changes the track condition. Rock machines require tighter tracks. Dirt machines require looser tracks.
- Check tension after temperature changes: Cold weather tightens tracks. Hot weather loosens tracks. Measure sag in the morning after the machine has sat overnight.
- Check tension after track work: Replacing a track or idler changes the tension. Adjust after any undercarriage repair.
- Use the correct grease type: Wrong grease damages the grease cylinder. The cylinder fails to hold pressure. Track tension drops.
- Inspect the grease cylinder for leaks: A leaking cylinder loses pressure. You end up with your bulldozer track tension wrong from a leaking cylinder. Replace the cylinder if leaking.
These prevention actions take 5 minutes daily. They save thousands of dollars in repair costs.
Watch for these signs. They mean your bulldozer track tension wrong and needs adjustment.
- Track slipping: The track slips on the sprocket during pushes. This means loose tracks. Derailment is next if ignored.
- Track whipping: The track flaps between the idler and carrier roller. Whipping damages track links.
- Excessive sag: The track droops more than 3 inches. Tighten immediately. Derailment is imminent.
- No sag: The track has no droop at all. This means tight tracks. Release grease. Tight tracks damage bearings.
- Track noise: Grinding or clicking from the undercarriage. This means debris or wrong tension.
- Machine pulls to one side: One side is loose. One side is tight. Adjust both sides.
- Hot rollers: Rollers overheat from excess friction caused by tight tracks. Release grease to cool the rollers.
Do not ignore these signs. Having your bulldozer track tension wrong leads to derailment. Fix the problem early.
Proper checking procedure gives accurate results. Follow these steps exactly.
- Park the machine on level ground. Soft ground gives false sag readings.
- Lower the blade to the ground. This stabilizes the machine.
- Shut off the engine. Engage the parking brake. Lock out the machine. Safety first.
- Measure the sag at the correct location. Place the tape measure on the track frame. Measure down to the top of the track shoe. The measurement must be taken at the point of maximum sag (usually midway between idler and first carrier roller).
- Measure both tracks. Your bulldozer track tension wrong on one side only is common. Uneven tension causes steering problems.
- Compare to the manual specification. Different machines have different sag measurements. Do not guess.
- Record your measurement. Track sag changes over time. Keeping a record helps you see trends.
The grease adjustment system uses hydraulic pressure. Grease is pumped into a cylinder. The cylinder contains a piston. The piston pushes against a spring. The spring pushes the idler forward. Forward pressure tightens the track.
Releasing grease reduces pressure. The spring relaxes. The idler moves backward. Backward movement loosens the track.
The system is simple and reliable. It requires no hydraulic pumps. It requires no electric power. Grease pressure is self-contained.
Your bulldozer track tension wrong when the grease pressure is incorrect. Adding or releasing grease corrects the pressure.
Do not overfill the cylinder. Overfilling creates excessive pressure. Excessive pressure damages the seals. The cylinder fails to hold pressure. Your bulldozer track tension wrong returns quickly.
Ignoring track tension costs money.
Costs of Ignoring Tension
- Derailment repair: Takes 2-4 hours. Downtime costs $200/hr ($400-$800 per derailment).
- Track damage: Replacing twisted track links costs $1,000. Idler replacement costs $2,000.
- Undercarriage wear: Roller replacement ($3,000), Sprocket ($1,500), Idler ($2,000).
- Total replacement: Your bulldozer track tension wrong leads to a $25k-$40k undercarriage replacement every 2,000 hours instead of 4,000.
The Grease Adjustment Solution
- Costs nothing: The grease adjustment is virtually free.
- Takes seconds: Fast and reliable fix.
- Prevents derailment: Stops the machine from breaking down mid-shift.
- Doubles component life: Saves tens of thousands over the life of the machine.
You now know the one grease adjustment. You know the checking procedure. You know the correct sag measurement. You know the signs of wrong tension. You know how to adjust.
Check your track tension today. Measure the sag. Compare to the manual. Adjust if needed. Your bulldozer track tension wrong problem will be corrected and your machine will run smoothly.
Share your experience in the comments. What sag measurement do you use? How often do you check track tension? Have you ever noticed your bulldozer track tension wrong leading to a problem? Your story helps other operators.
