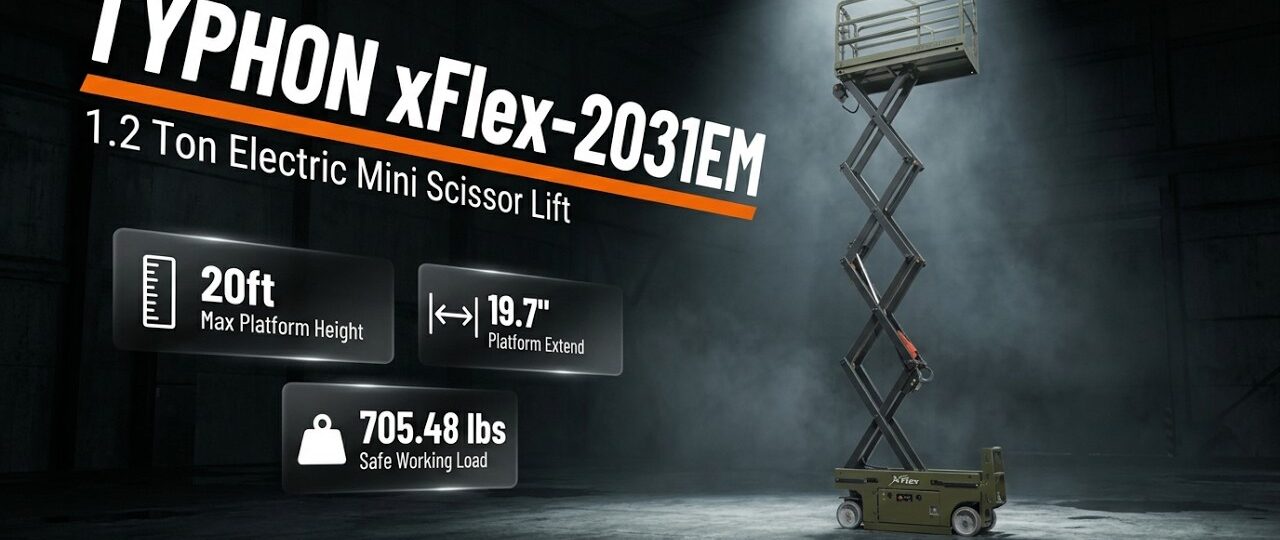

TYPHON xFlex 2031EM Electric Mini
Scissor Lift | 20 Ft Platform Height |
26.25 Ft Working Height | 705 lb Capacity |
Zero Inner Turning Radius | 31.5 In Width |
6-8 Hour Battery Runtime
The TYPHON xFlex 2031EM is a professional grade electric mini scissor lift engineered for high-volume warehouses, commercial construction environments, and large-scale facility maintenance operations where
elevated access is not occasional — it is daily, it is essential,
and it cannot fail.
20 feet of platform height. 26.25 feet of working reach. 705.48 lb safe working load. Zero inner turning radius. 31.5-inch compact width. 6 to 8 hours of battery runtime on a single charge.
Ten precision-engineered safety and control components built into every
machine from the ground up.
This is elevated access engineered to the professional standard that
demanding facility environments require.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
📐 PLATFORM AND REACH SPECIFICATIONS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Maximum Platform Height: 20 Ft | 6 m
✅ Maximum Working Height: 26.25 Ft | 8 m
✅ Safe Working Load: 705.48 lbs
✅ Maximum Employees: 2
✅ Platform Size: 66.9 x 29.5 Inches
✅ Platform Extension: 19.7 Inches
✅ Extension Workload: 249.12 lbs
✅ Rise/Fall Cycle: 80–90 Seconds
✅ Overall Height Folded Fence: 68.9 In
✅ Overall Height Unfolded Fence: 80.7 In
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🔄 MANEUVERABILITY SPECIFICATIONS
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Overall Length: 74.8 Inches
✅ Overall Width: 31.5 Inches
✅ Wheelbase: 54.3 Inches
✅ Inner Turning Radius: 0
✅ Outer Turning Radius: 66.9 Inches
✅ Max Gradeability: 25%
✅ Max Working Angle: 2°/3° X/Y
✅ Min Ground Clearance Folded: 3.9 In
✅ Min Ground Clearance Lifting: 0.75 In
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
⚡ POWER AND PERFORMANCE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Lifting/Drive Motor: 24V / 3.0 kW
✅ Battery System: 12V / 120Ah x 2
✅ Charger: 24V / 25A
✅ Charging Time: 6–7 Hours
✅ Working Time: 6–8 Hours
✅ Travel Speed Folded: 2.2 MPH
✅ Travel Speed Lifted: 0.5 MPH
✅ Total Machine Weight: 2,646 lbs
✅ Tire Size: Φ305 x 107
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
🛡️ SAFETY AND CONTROL FEATURES
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Emergency Stop — Ground + Platform
✅ Safety Maintenance Support Rod
✅ Solid Tires with Integrated Brakes
✅ Fault Code Battery Display
✅ Main Power Switch
✅ Ground Control Panel
✅ Turtle Speed Switch
✅ Platform Expansion Control Device
✅ Joystick Control Handle
✅ Quartz Hours Meter
✅ Integrated Access Ladder
✅ Chassis Control System
